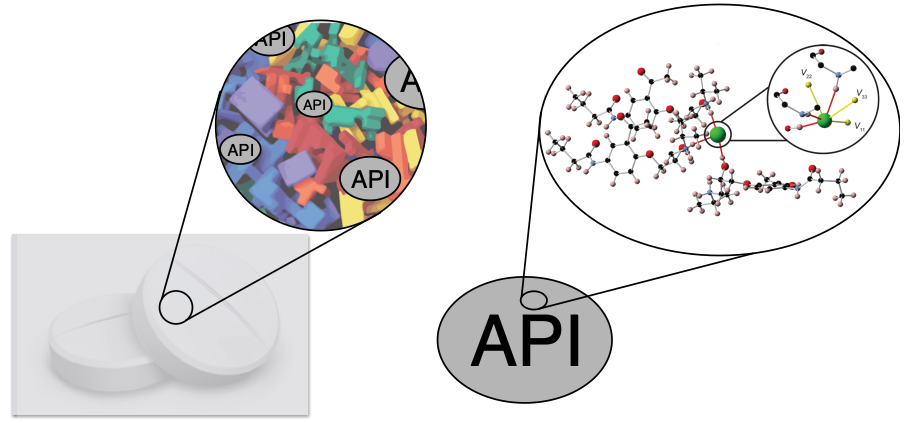

Drug formulations are heterogeneous solids comprised of one or more active pharmaceutical ingredients (APIs), along with numerous other materials known as excipients, which are non-medical ingredients that serve as stabilizers of the API, bulking agents, diluents, or therapeutic enhancers (e.g., improved solubility, adsorption, lubrication, etc.) It is often difficult to detect the API in a dosage form, due to interfering signals from the complex array of excipients.

Stacks Image 1234
Stacks Image 1236

Our research group has pioneered 35Cl SSNMR an alternative approach for studying APIs. 35Cl SSNMR spectra can serve as spectral fingerprints of each solid form of an API. As such, they can be used to identify the solid phase present in a dosage form thereby providing quality assurance during drug development and manufacturing.

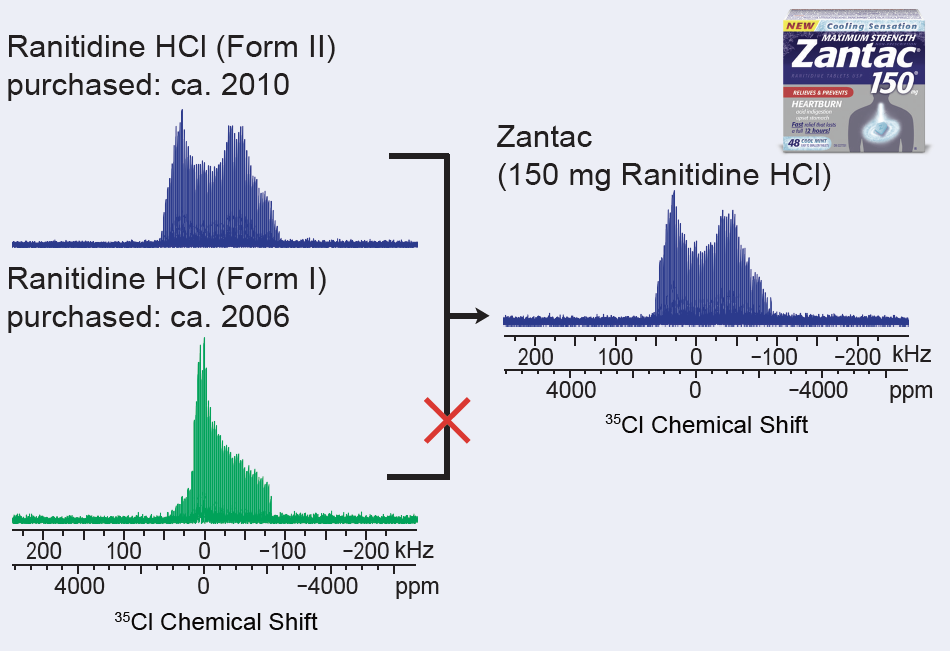

Here, 35Cl SSNMR is used to differentiate two forms of ranitidine HCl, the active ingredient in Zantac, which is an H2 (or histamine-2) blocker that is used to relieve and prevent heartburn.

Stacks Image 1250

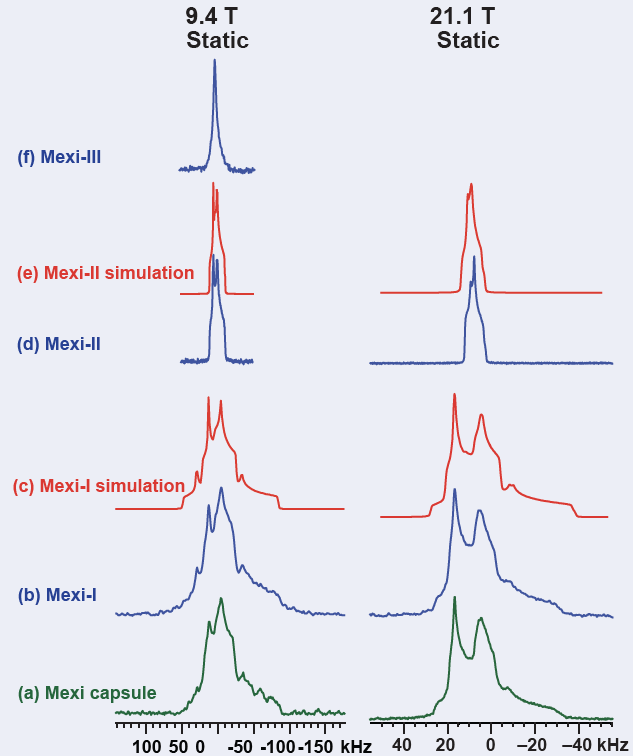

35Cl SSNMR is very useful for not only differentiating the three polymorphs of mexiletine HCl, a drug used to treat abnormal heart rhythms, chronic pain, and muscle stiffness, but also identifies mexiletine Form 1 as the polymorph present in the dosage form.

Stacks Image 1270
